M6 solar cell MBB solar cell double-sided half has high precision, high flatness screen printing, higher welding ability. After parallel resistance test, effectively reducing of heat spot effect, sorting into 15 grades according to each piece, accuracy up to 0.1%±. M6 solar cell through strict tensile test, with good welding ability, excellent PID resistance, efficiency up to 22.9%.
M6 solar cell with perc half cell technology has higher conversion efficiency than the full cell.
Compared with the full cell module, the perc half cell solar module's temperature is 2-3 degrees lower, and the hot spot temperature is 10-20 degrees lower.
M6 solar cell MBB solar cell double-sided half has high precision, high flatness screen printing, higher welding ability.
pdf download

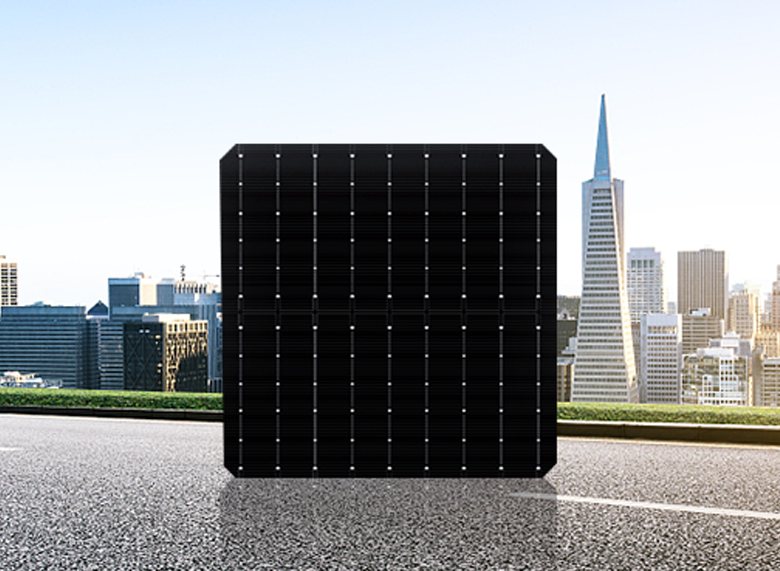

The size of the M6 solar cell is 166-166mm. The M6 solar cell can significantly increase the output power of the module, which is another leap after the G1 size. M6 solar cell can reduce the cost of modules, which is an effective way to reduce the cost of electricity. M6 + 22.5% PERC + half cell + MBB boosts the power of the module in the 4.5 era.
| Dimension | 166mm*166mm±0.25mm |
| Thickness (Cell) | 190±30μm |
| Front (−) | 9*0.0.08±0.03mm busbars(Silver), 120 finger grids, Blue anti-reflecting coating (silicon nitride) |
| Back (+) | width of back electrode(silver) 1.3±0.25mm, finger grids(aluminum), dotted laser design |
pdf download

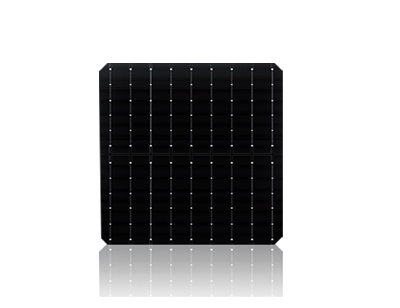

The M6 solar cell P-type double-sided half can contribute up to 30% of the gain during the power generation process of the module. The half-cell technology has higher conversion efficiency than the full cell and has a lower rated operating temperature. Compared with the full cell module, the half cell module's temperature is 2-3 degrees lower, and the hot spot temperature is 10-20 degrees lower. At the same time, M6 solar cell has low shadow occlusion loss.
| Dimension | 166mm×166mm±0.25mm |
| Thickness (Cell) | 190±30 |
| Front Side (−) | 9 busbars(silver), width 0.1±0.03mm, 124 finger grids, Blue anti-reflecting coating(silicon nitride) |
| Rear Side (+) | width of back electrode(silver) 1.3±0.25mm, finger grids(aluminum), dotted laser design |
