Solar panel full black adopts a multi-bus design, with a more uniform crack stress distribution and higher reliability. The half-cut technology is used to reduce the heating of the module and improve safety performance. Full black aesthetic BIPV design, perfect integration of photovoltaic and building, non-destructive slicing technology, greatly improve module power and efficiency, the output power is 390-405w.
Dimension | 1723×1133×30mm |
Weight | 20kg |
No. of cells | 108 |
Rated Maximum Power | 405w |
Maximum Efficiency | 20.75% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Dimension | 1908×1133×35mm |
Weight | 24kg |
No. of cells | 120 |
Rated Maximum Power | 455w |
Maximum Efficiency | 21.05% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
The product adopts the non-destructive dicing technology, greatly improves the power and efficiency of the module, the output power is 400-420w, and has the advantages of small size, light weight, high power generation, good system adaptability, etc.
Dimension | 1723×1133×30mm |
Weight | 20kg |
No. of cells | 108 |
Rated Maximum Power | 420w |
Maximum Efficiency | 21.52% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Dimension | 1908×1133×35mm |
Weight | 24kg |
No. of cells | 120 |
Rated Maximum Power | 455w |
Maximum Efficiency | 21.05% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
The product adopts multi-bus design, with more uniform crack stress distribution and higher reliability. Ultra-high power is specially designed for distributed and large power plants. With non-destructive slicing technology, the power and efficiency of modules can be greatly improved. The output power is 540-560w.
Dimension | 2278×1133×35mm |
Weight | 28kg |
No. of cells | 144 |
Rated Maximum Power | 560w |
Maximum Efficiency | 21.7% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |

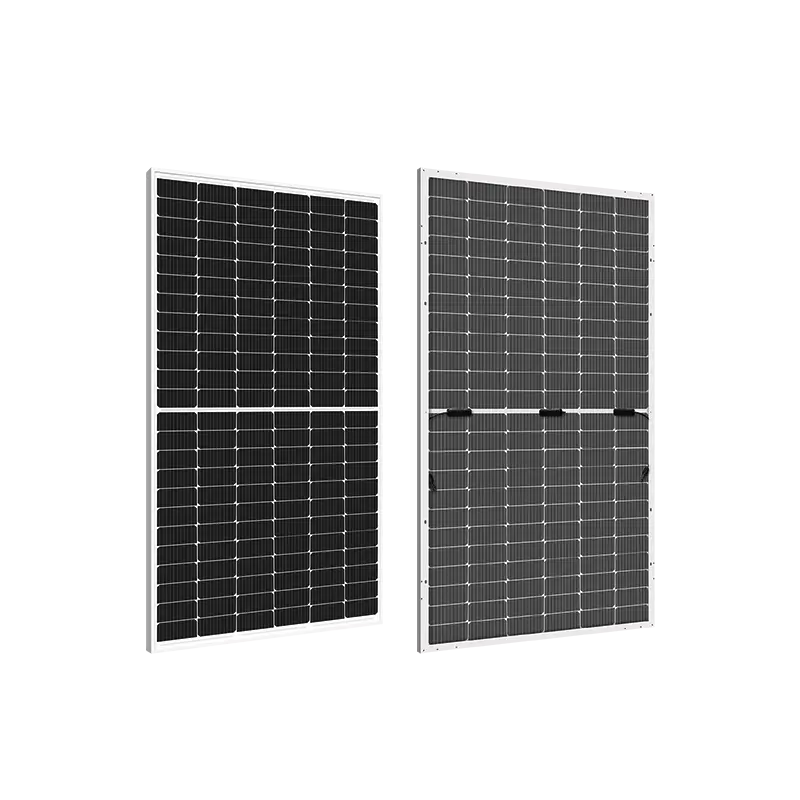

The product is specially designed for centralized ground power stations with different installation conditions, high adaptability and high compatibility, and mature support and inverter scheme. Double-sided power generation technology, up to 30% back sheet gain can be achieved.
Dimension | 2278×1133×35mm |
Weight | 28kg |
No. of cells | 144 |
Rated Maximum Power | 550w |
Maximum Efficiency | 21.31% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Integrating photovoltaics and architecture perfectly with all-black aesthetic BIPV design. The power and efficiency of module has been vigorously improved through non-destructive technology, the output power is up to 400-420w.
Dimension | 1723×1133×30mm |
Weight | 20kg |
No. of cells | 108 |
Rated Maximum Power | 420w |
Maximum Efficiency | 21.52% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2cCompatible |

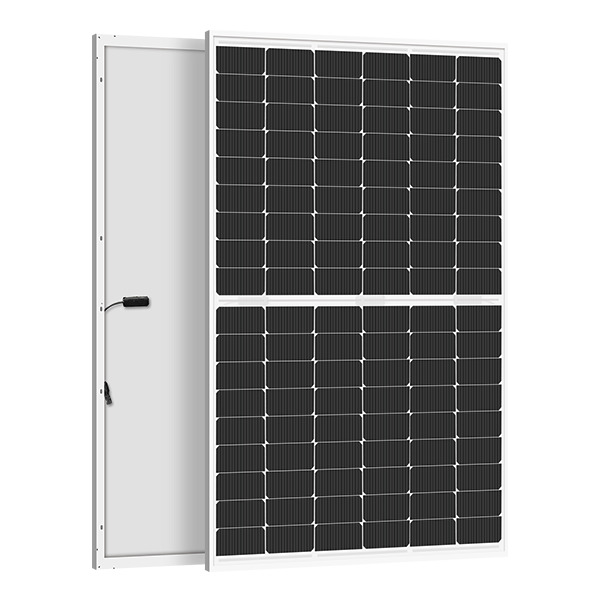

The manufacturing process of product has been improved through conventional methods such as cell efficiency, Mono MBB half cut and high-density packaging, which vigorously improved the power and efficiency of solar module, with an output power up to 420-440w. And has advantages of small-size, light-weight, high power generation and good system adaptability.
Dimension | 1723×1133×30mm |
Weight | 20kg |
No. of cells | 108 |
Rated Maximum Power | 440w |
Maximum Efficiency | 22.54% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Dimension | 1908×1133×35mm |
Weight | 22.4kg |
No. of cells | 120 |
Rated Maximum Power | 480w |
Maximum Efficiency | 22.21% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Hige power :Excellent LCOE, Applicable to distributed medium and large scale distributed ground power stations
High precision process:Non destructive cutting, round wire calendering, MBB, high-density packaging, etc
Excellent results:Lower attenuation,Lower series loss
Dimension | 2278×1133×35mm |
Weight | 28kg |
No. of cells | 144片 |
Rated Maximum Power | 580w |
Maximum Efficiency | 22.48% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 / EVO2 Compatible |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96 |
Rated Maximum Power | 375w |
Maximum Efficiency | 21.53% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 21.3kg |
No. of cells | 96pcs |
Rated Maximum Power | 375w |
Maximum Efficiency | 21.53% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96pcs |
Rated Maximum Power | 385w |
Maximum Efficiency | 22.10% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96pcs |
Rated Maximum Power | 390w |
Maximum Efficiency | 22.39% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 21.3kg |
No. of cells | 96pcs |
Rated Maximum Power | 390w |
Maximum Efficiency | 22.39% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1723×1133×30mm |
Weight | 23.9kg |
No. of cells | 108pcs |
Rated Maximum Power | 425w |
Maximum Efficiency | 22.39% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1723×1133×30mm |
Weight | 23.9kg |
No. of cells | 108pcs |
Rated Maximum Power | 440w |
Maximum Efficiency | 22.54% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96 pcs |
Rated Maximum Power | 360w |
Maximum Efficiency | 20.66% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 21.3kg |
No. of cells | 96pcs |
Rated Maximum Power | 360w |
Maximum Efficiency | 20.66% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96pcs |
Rated Maximum Power | 370w |
Maximum Efficiency | 21.24% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 17.8kg |
No. of cells | 96pcs |
Rated Maximum Power | 375w |
Maximum Efficiency | 21.53% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
Dimension | 1538×1133×30mm |
Weight | 21.53kg |
No. of cells | 96pcs |
Rated Maximum Power | 375w |
Maximum Efficiency | 21.53% |
Junction Box | IP≥68, TÜV&UL |
Maximum System Voltage | DC1500 |
Operating Temperature | -40℃ to 85℃ |
Cable&Connector | 4mm2, EVO2 or EVO2 |
