G12 Solar Panels

G12 Solar Panels

The product strengthens the density of components, and the output power is 385w-670w, which greatly improves the power and efficiency of components. At the same time, it has the core advantages of small size, lightweight, high power generation, good system adaptation, convenient transportation, environmental protection, and green.

Types of the G12 Solar Panels For Sale

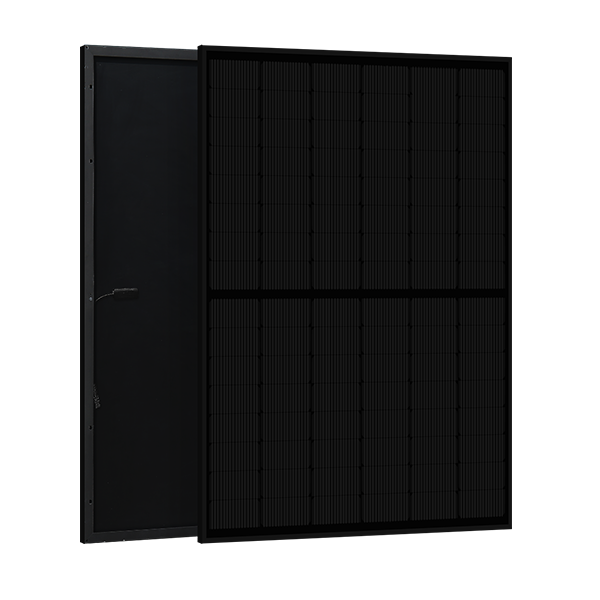

G12 80cells 370-385w black solar panel

G12 80cells 370-385w black solar panel

G12 80cells 370-385w black solar panel pdf download
G12 80cells 370-385w black solar panel
Dimension1760×1096×35mm
Weight21.5kg
No. of cells80
Rated Maximum Power385w
Maximum Efficiency19.96%
Junction BoxIP≥68, TÜV&UL
Maximum System VoltageDC1500
Operating Temperature-40℃ to 85℃
Cable&Connector4mm2, EVO2 / EVO2 Compatible


G12 80cells 385-405w Solar Panel

G12 80cells 385-405w Solar Panel

G12 80cells 385-405w Solar Panel pdf download
G12 80cells 385-405w Solar Panel

The product can match different installation conditions, take into account high adaptability and high compatibility, non-destructive dicing technology, greatly improve the power and efficiency of the module, the output power is 385-405w, and it is suitable for household and small industrial and commercial distributed projects.

Dimension1760×1096×35mm
Weight21.5kg
No. of cells80
Rated Maximum Power405w
Maximum Efficiency21.00%
Junction BoxIP≥68, TÜV&UL
Maximum System VoltageDC1500
Operating Temperature-40℃ to 85℃
Cable&Connector4mm2, EVO2 / EVO2 Compatible


G12 100cells 485-505w solar panel

G12 100cells 485-505w solar panel

G12 100cells 485-505w solar panel pdf download
G12 100cells 485-505w solar panel
Dimension2186×1096×35mm
Weight23.5kg
No. of cells100
Rated Maximum Power505w
Maximum Efficiency21.08%
Junction BoxIP≥68, TÜV&UL
Maximum System VoltageDC1500
Operating Temperature-40℃ to 85℃
Cable&Connector4mm2, EVO2 / EVO2 Compatible


G12 120cells 585-605w Solar Panel

G12 120cells 585-605w Solar Panel

G12 120cells 585-605w Solar Panel pdf download
G12 120cells 585-605w Solar Panel

The product strengthens component density, greatly improves component power and efficiency, with an output power of 585-605w, and has core advantages such as high power, high efficiency, high power generation, cost-saving, good system adaptation, high reliability, and environmental protection.

Dimension2172×1303×35mm
Weight30.5kg
No. of cells120
Rated Maximum Power605w
Maximum Efficiency21.38%
Junction BoxIP≥68, TÜV&UL
Maximum System VoltageDC1500
Operating Temperature-40℃ to 85℃
Cable&Connector4mm2, EVO2 / EVO2 Compatible


G12 132cells 650-670w solar panel

G12 132cells 650-670w solar panel

G12 132cells 650-670w solar panel pdf download
G12 132cells 650-670w solar panel
Dimension2384×1303×35mm
Weight33.5kg
No. of cells132
Rated Maximum Power670w
Maximum Efficiency21.57%
Junction BoxIP≥68, TÜV&UL
Maximum System VoltageDC1500
Operating Temperature-40℃ to 85℃
Cable&Connector4mm2, EVO2 / EVO2 Compatible
